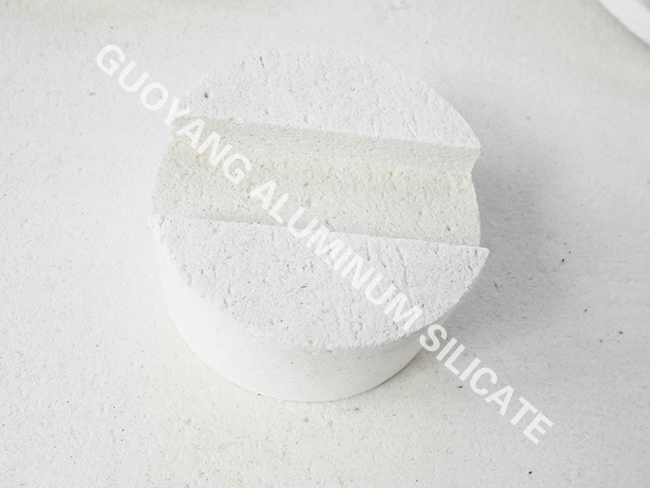

　　Ceramic profiles are made of high-quality ceramic fiber cotton as raw material by vacuum forming process.

Characteristics:

Able to support rigid and self-supporting products with superior high temperature performance. The product has tough texture, direct contact with flame for hot surface, high compressive strength, long service life and remarkable sound absorption effect. Seamless lining; Low heat storage, less heat loss; Direct contact flame for hot surface; Excellent construction and installation performance; Excellent thermal shock resistance; High compressive strength, long service life; Significant sound absorption effect

Function:

Industrial kiln observation hole, thermometer insertion hole; industrial kiln burner, furnace door; liquid collecting tank and flume in aluminium products industry; thermal radiation insulation of civil and industrial heating devices; non-ferrous metal fuse channel, groove cushion, casting cap mouth; mechanical and electrical equipment connection gasket.

Parameter:

Classification temperature 1260 1400

Product code GX-255 GX-355 GX-455 GX-555 GX-755

Heating Permanent Line Change (%)

1000 x 24h (-3)

1100 x 24h <-3

1200 x 24h <-3

1350 24h < - 3

1400 x 24h <-3

Thermal conductivity (W/m.k)

(average 200 C) 0.055-0.065 0.060-0.070

(average 400 C) 0.110-0.120 0.105-0.125

(average 600 C) 0.160-0.170 0.170-0.180

Volume density kg/m3 300-400

Compressive strength (thickness direction compression 10%) (Mpa) > 0.2

Water content (%) less than 1

AL2O (%) - 50-60
